Owned By:

Yermo

1991 Jeanneau Sun Odyssey 44

The SV Will Sea

Yermo
6 days ago
Part (291333)

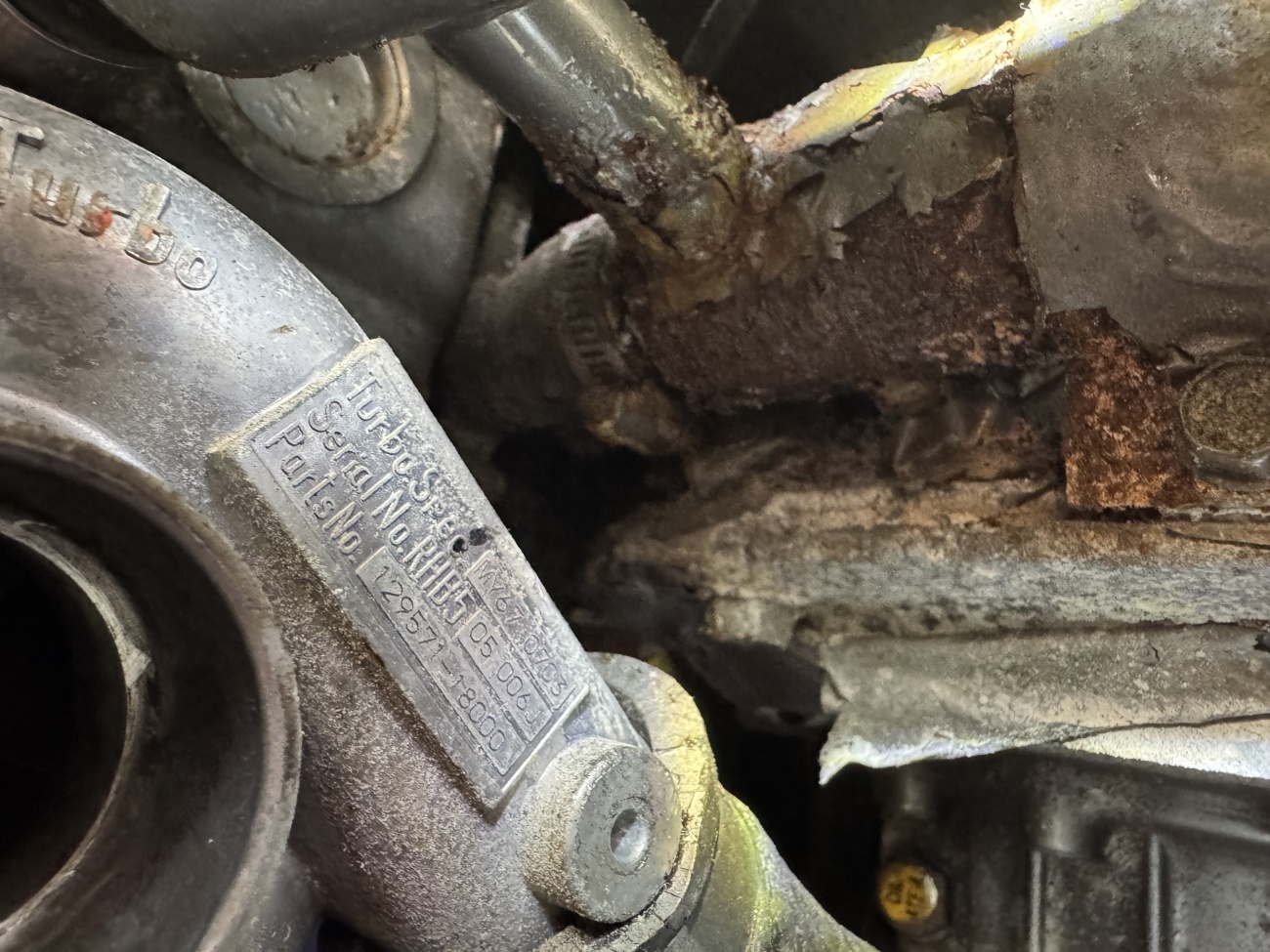

Yanmar Turbo

Yanmar Turbo

I don't know if this turbo was the factory original.

The plate says:

  • Turbo Spec: MY 67-0703
  • Serial Number: RHB5 05 006J
  • PartsNo: 129571-18000

Part Number: 129579-18000
Yermo
10 months ago
Part (287578)

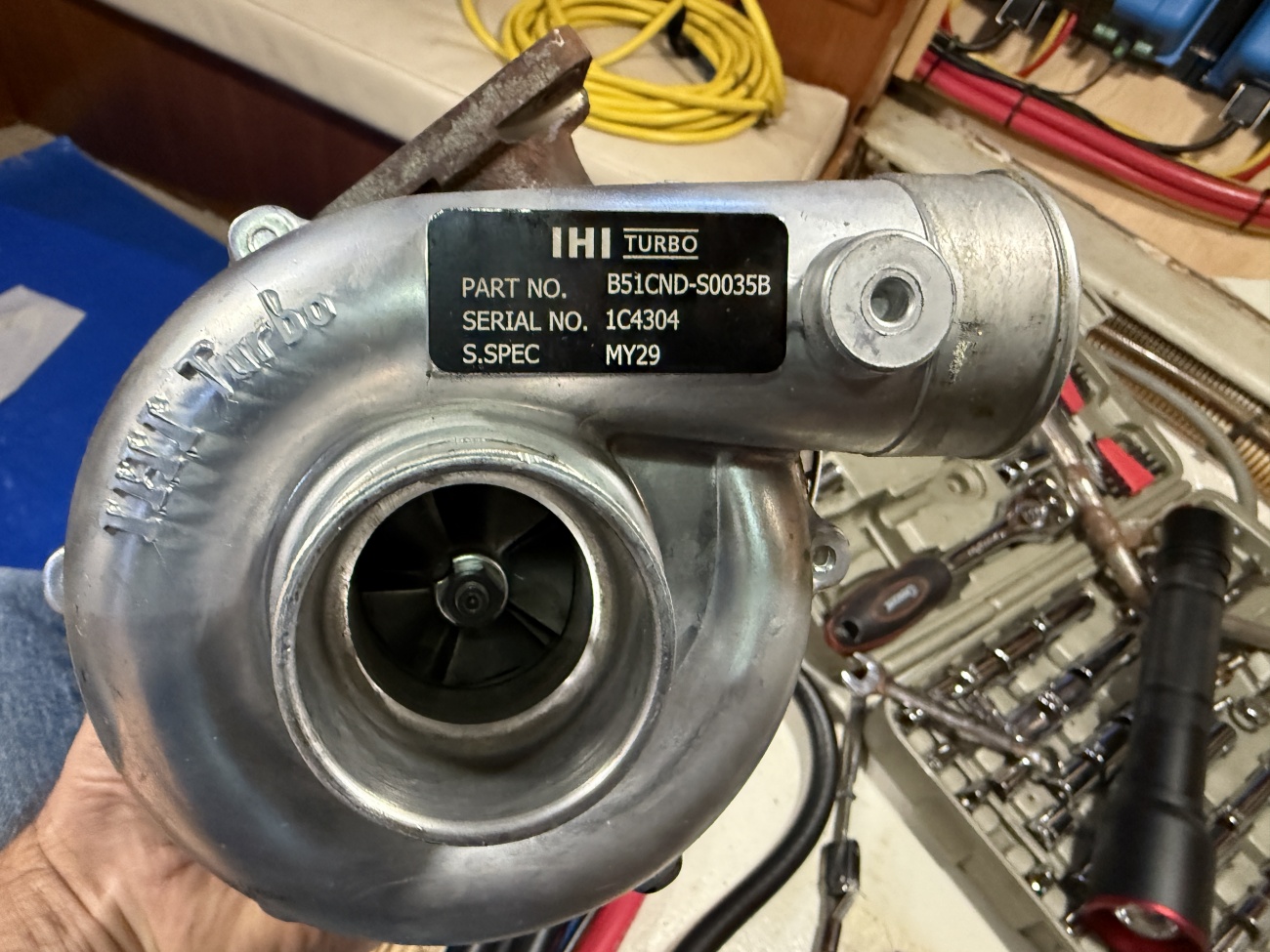

Yanmar 4JH-TE Turbo Diesel

Yanmar 4JH-TE Turbo Diesel

Type: RHB52 (IHI)

Model: MY29

More info from an Ebay listing of a reportedly brand new turbo:

Part Number: VA130035
Short Spec.: MY29
Interchangeable Number: B51CND-S0035B, B51CND-S0035G, NN130041, MY20
OEM Number: 12947218000, 129492-18000, 12949718000, 129497-18000, 5T-611
Turbo Model: RHB52H, RHB52H-52002P15NFBRL348C
Manufacturer: IHI Turbo - CloverTurbo

Year: 1983-89
Engine: 4JH-TE, 4JH-TZ
Displacement: 1.64L, 1644 ccm, 4 Cylinders
Power: 55 HP

Angle α (Compressor Housing): 90º
Angle β (Turbine Housing): 218º
Back Plate: NN133021 (64T-002)
Bearing Housing: NN133382 (N133422/N133432)(Oil Cooled)
CHRA: NE920018
Compressor Cover: NN134072
Compressor Wheel: NN136512 (39T-027)
Gasket (Oil Outlet): 210636 (Gasket Paper)
Gasket (Turbine Inlet): 210276 (2445051)
Heat Shield: NN137055 (38T-013)
Protector Cover (Turbine Housing): NN139724
Repair Kit: NN139922 (509T-545)
Turbine Housing A/R: 15
Turbine Housing: NN139452
Turbine Wheel: NN131612

Application:
1983-89 Yanmar Marine with 4JH-TE, 4JH-TZ Engine

Part Number: 129497-18000
Yermo
10 months ago
Part (287171)
Yermo
2 months ago
Part (290209)
SmartPlug BM50S

SmartPlug BM50S

50 Amp shorepower hookup.

Yermo
2 months ago
Part (290208)
Yermo
2 months ago
Part (290203)
Yermo
2 months ago
Part (290205)
Raymarine SR200 SiriusXM InfoLINK

Raymarine SR200 SiriusXM InfoLINK

Duncan got this for me.

Yermo
2 months ago
Part (290204)
Raymarine Alpha 7 MFD

Raymarine Alpha 7 MFD

I have two of these, one on either side of the companionway.

Yermo
2 months ago
Part (290201)
Raymarine GA200 GNSS GPS Antenna

Raymarine GA200 GNSS GPS Antenna

The GPS Antenna I use.

Yermo
2 months ago
Part (290200)
RayMarine RSW-Wired Performance Wind Transducer

RayMarine RSW-Wired Performance Wind Transducer

New (as of 2024) generation wind transducer.

Part Number: E70670
Yermo
2 months ago
Part (290199)
Guindeau GDI-600 Anchor Windlass

Guindeau GDI-600 Anchor Windlass

Rumor has it that parts have not been available for these windlass' since at least 2014, which sucks.

Google Search terms are: Guindeau "gdi 600"

Yermo
2 months ago
Part (290177)

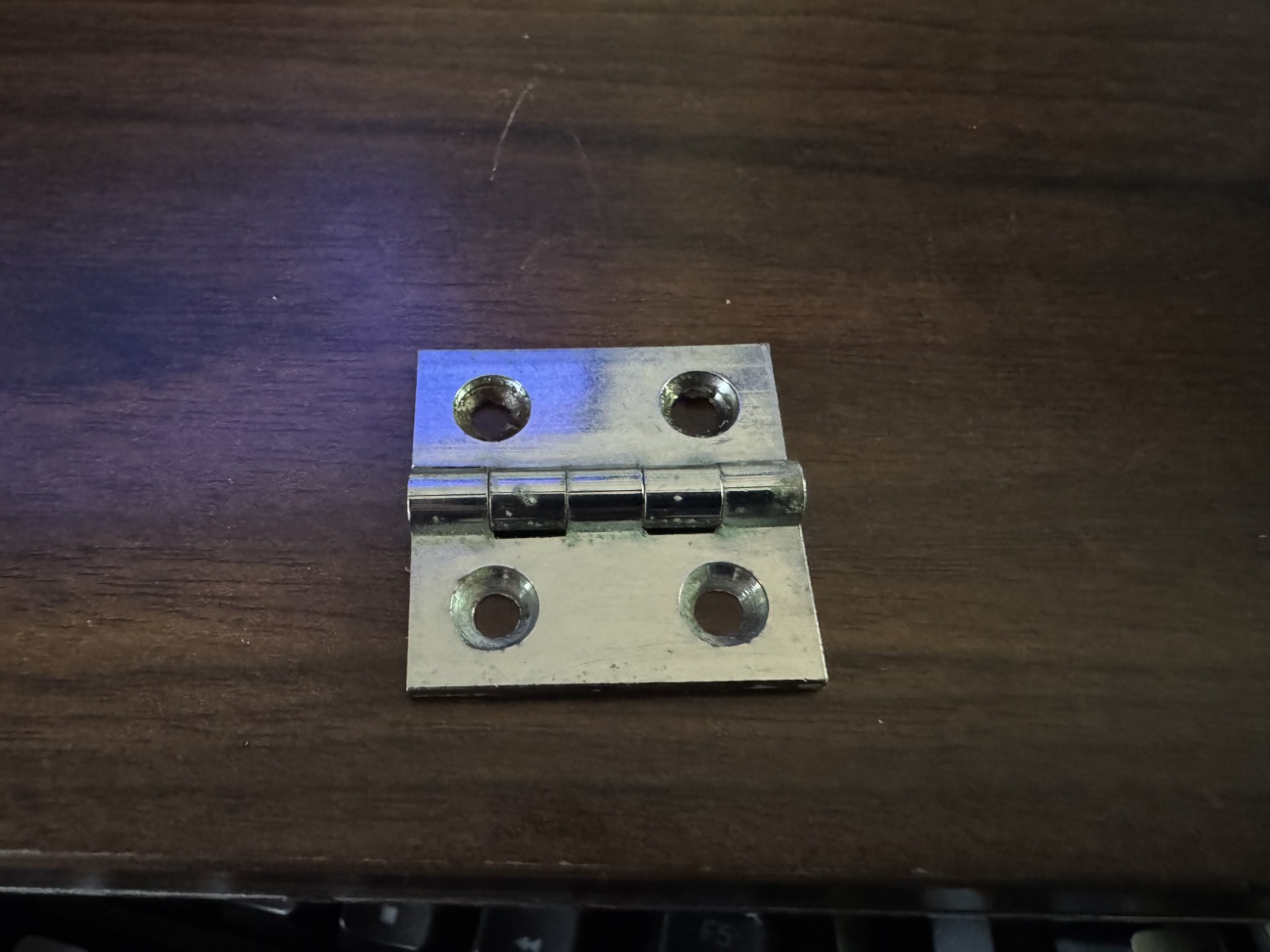

Head Cabinet Door Hinges

Head Cabinet Door Hinges

These hinges are used on the cabinet doors in both heads and the forward shower. Many of them have corroded and a number have broken. They are proving challenging to source.

They are 30mm by 30mm (1.18" x 1.18") with holes spaced 17mm ( 0.67") apart.

These looks like they might fit the bill: GN 136-A4-30-30-C from elesa.com.



Yermo
4 months ago
Part (288900)

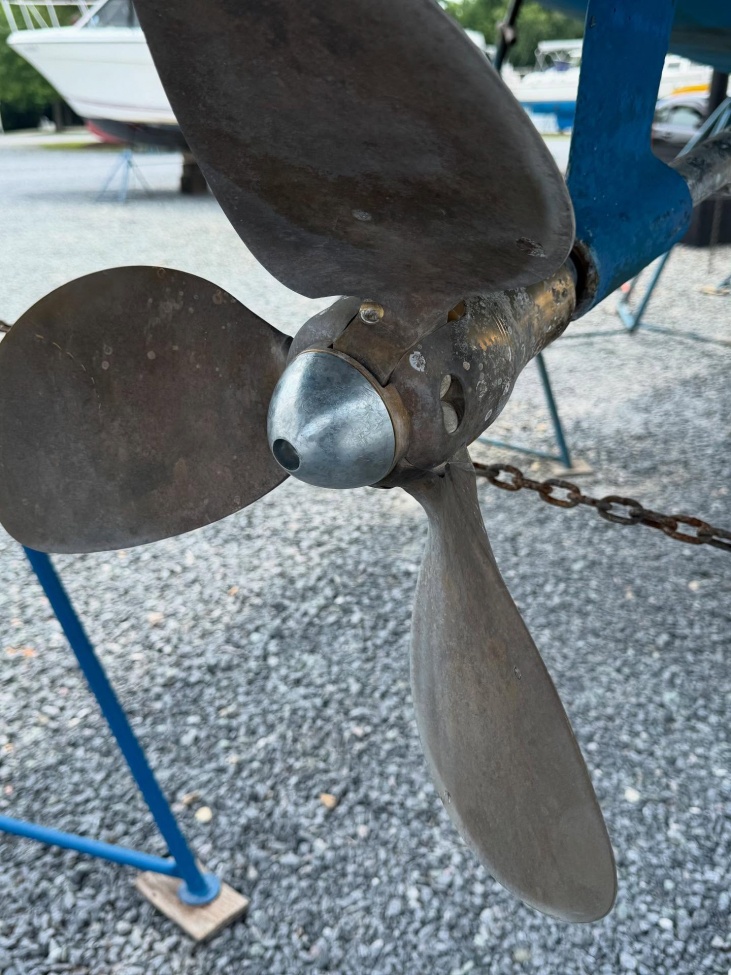

Flex-O-Fold Propeller Zinc Anode

Flex-O-Fold Propeller Zinc Anode

It appears there's only one size of Zinc Anode.



Part Number: FX-1040Z
Yermo
8 months ago
Part (288355)
Arco Zeus A275L Alternator

Arco Zeus A275L Alternator

Voltage 12V
Field Type P
Rotor Poles 16
Stator Size 138mm
Frame Size Large
Weight 14.9 lbs / 6.7 kg
Regulation Internal/External (IE) or
External Only (EX)
Output Voltage 14.1V (default)
Finish (Black) Cerakote or E-coating
Cut-In RPM 1,061 Alternator RPM
Maximum Alt RPM 19,000
Battery Post M8 Thread Post, Side Mount
Standard Pulley 49K6 (6-groove, 49mm)
Pulley Mount 17mm diameter shaft, 25mm long, threaded M17 x 1.5
Pulley Hardware M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
Diodes 6 positive, 6 negative, 50A Rated, Avalanche
Max Output (Cold, 9,000 RPM) 311 Amps
Sustained Cruising Output
(Hot, 6,000 RPM)
227 Amps
Sustained Idle Output
(Hot, 3,000 RPM)
198 Amps
Max Continuous Operating Temperature 110°C / 230°F



I sent an email to support asking about the correct torque for the 24mm pulley bolt. The answer they sent me was 80ft/lbs.

Part Number: A275L
Yermo
8 months ago
Part (288367)

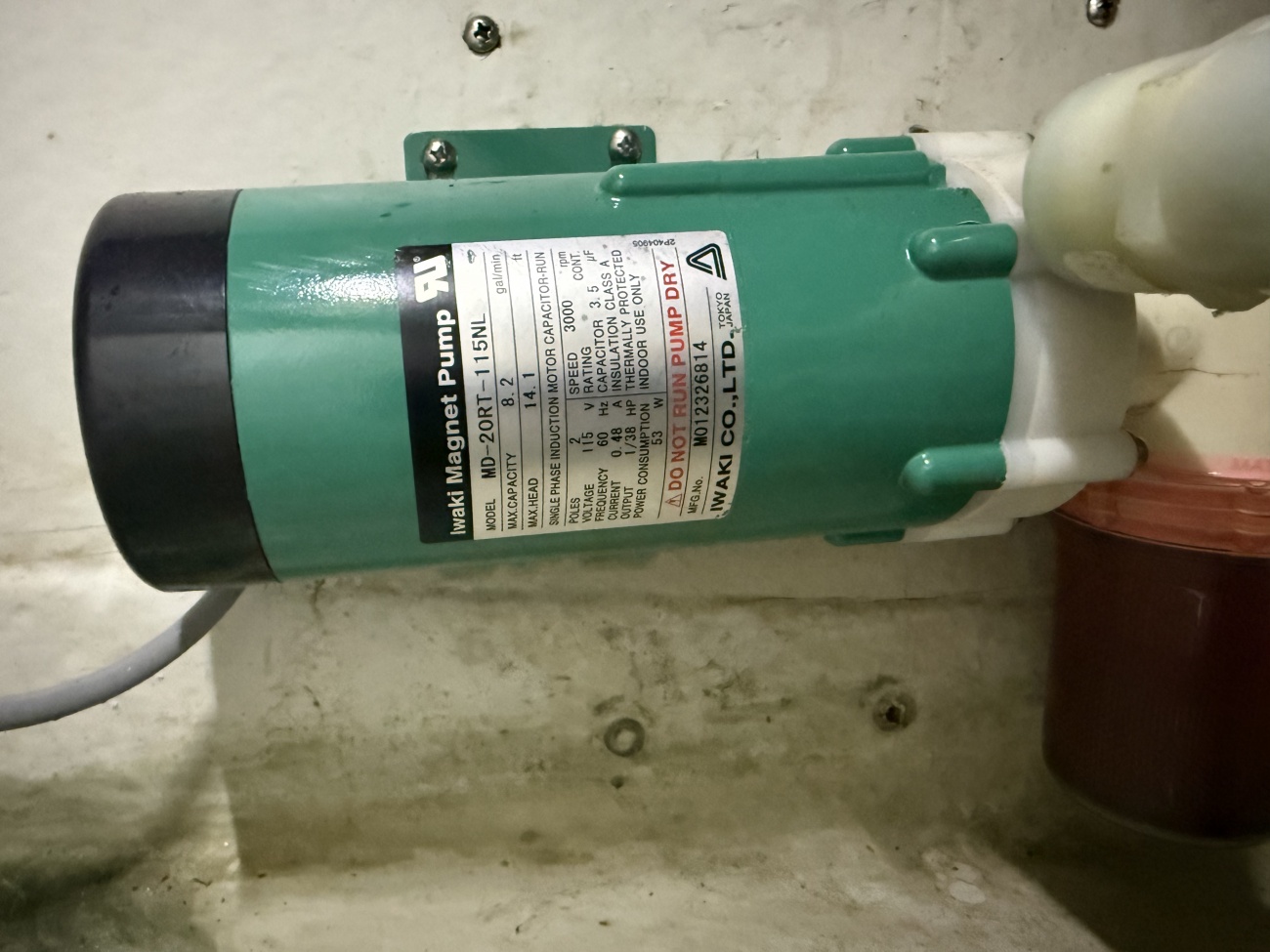

Iwaki 500GPH Pump

Iwaki 500GPH Pump

There are two of these that feed the HVAC Units. 58W power usage.

Yermo
8 months ago
Part (288366)
Yermo
8 months ago
Part (288365)
